Victron Energy

Victron Colour Control GX Panel (System Controller)

Victron Colour Control GX Panel (System Controller)

Regular price £445.99 GBP
Regular price Sale price £445.99 GBP
Sale Sold out
Tax included.

Victron Colour Control GX Panel (System Controller)



Product code: VC-BPP010300100
Manufacturer SKU: BPP010300100R

Description

The Colour Control GX is the communication-centre of your installation. It offers at-a-glance live information, and lets you control all products connected to it. Full system control is gained - almost anywhere in the world - by accessing your Color Control GX using our free-to-use Victron Remote Management Portal

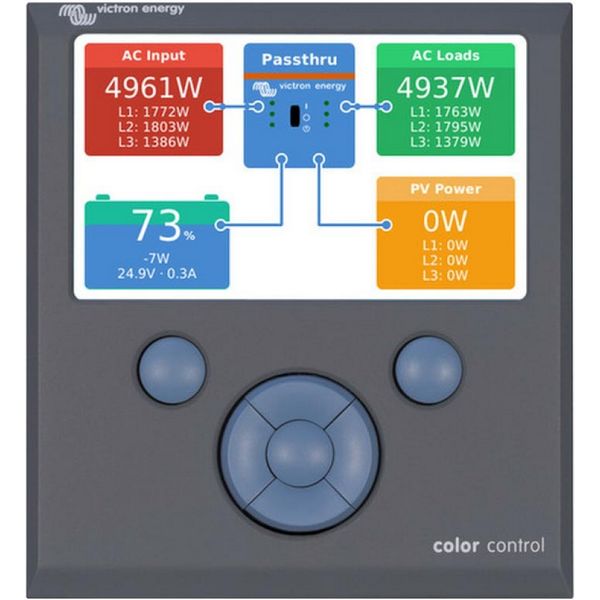

At a single touch, Colour Control GX provides an instant overview of your system: battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator.

The Colour Control GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption - saving you money.

The Color Control GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance at dead of night.

Planning a trip? Remote monitoring of your Color Control GX allows you to make sure your boat or motorhome are ready to go. Color Control GX also allows you to talk to connected equipment from other manufacturers.

Brand Victron
Type Control Panels
Voltage Description 9V - 70V DC
Model Color Control GX
Height Description 130mm (5-1/8")
Width 120mm
Depth 28mm
Temperature Range -20°C to +50°C
Approvals Safety: EN 60950, EMC: EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1 & EN 55014-2, Automotive: E4-10R-053535
Amps Description Current Draw with Display on at 12V: 160mA min. / 245mA max. At 24V: 90mA min., 125mA max. At 48V: 45mA min., 65mA max

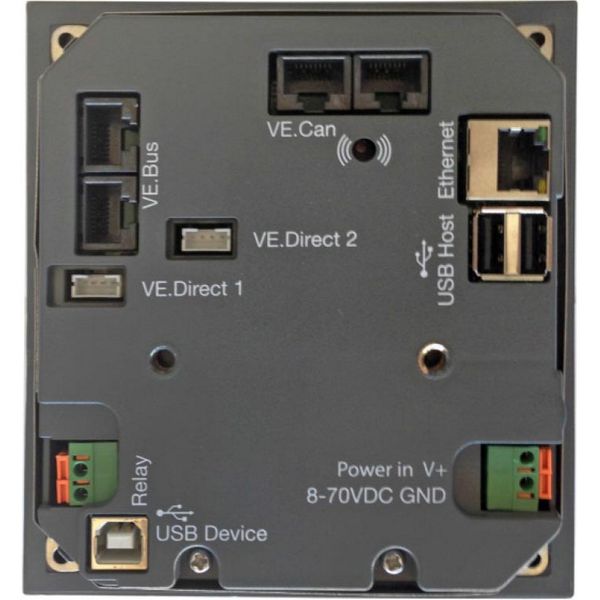

Connections Description 2 VE.Direct ports (isolated), 2 VE.Can paralleled RJ45 sockets (isolated), 2 VE.Bus paralleled RJ45 sockets (isolated), 2 USB Host ports, Ethernet 10/100/1000MB RJ45 socket (isolated except shield)
